UltraTouch Connection Packages for Scan Tool EEPROM adapters
AUTEL XP400 PRO - TOPDON T-Ninja BOX - LAUNCH X431 - XTOOL - VVDI PROG and more
automotive networkTHE BLACK CLIP - The black clip, if providedl, supports only standard SOIC (8 pin) eeproms.It is the only connection option for in-circuit eeprom work when using a scanner or tablet eeprom adapter such as the Autel XP400 PRO. It is possible to have in-circuit reading and programming success with the clip. It is and can be, as many users experience, a frustrating ordeal. The design of the clip, while adequate, is not sufficiently precise to fully clutch the eeprom chip body. This flaw prevents the full engagement of the clip jaws which is necessary to firmly hold the clip in place. Since the clip jaws do not fully close around the body of the eeprom part, the clip contact fingers may or may not make a firm, positive connection to the eeprom pins. The result is that the user, after a failed read or program attempt, must manipulate (jiggle) the clip. This can cause the clip to "pep-off" of the eeprom which forces the user to reattach the clip to the part. This frustrating procedure can happen many times. Also, if a program (verification error) or read (screen of FF or 00) fails, the user must reinstruct the tool to again perform the operation with no guarantee of success.
THE UltraTouch Packages - Each UltraTouch package includes hand assembled, field proven, in-circuit connection options developed by Andromeda Research for real world applications. There are three packages from which to choose; basic, advanced and ultimate. The contents of each package is shown below. The black clip only allows connection to standard SOIC eeproms. Any other package type must be unsoldered and then soldered to an external mezanine board which is then installed in the tool eeprom adapter. Once the read or program procedure is complete the part is unsoldered from the mezanine board and resoldered to the original circuit assembly. The Ultimate UltraTouch package include the Precision Probe Set which allows connection to the tiny (TSSOP and MSOP) parts which means no unsoldering. The UltraTouch connection options attach to the UltraTouch base (included) this in tern is installed in the 16 pin ZIF socket which is standard on all tool eeprom adapters. This allows an UltraTouch package to work with any tool eeprom adapter or third party programmer. NOTE: Andromeda Research is not responsible if the specific tool eeprom adapter fails to read or program an eeprom in-circuit. Successful in-circuit work is the responsibility of the tool manufacturer and their product design. CF-29 toughbook
UltraTouch PACKAGES
BASIC Package
ADVANCED Package
ULTIMATE Package
OPTIONAL ITEMS
UltraTouch High Endurance Clip
Conformal Coating Removal Pen
UltraTouch Zippered Case
Hinged Storage Box
REPLACEMENT ITEMS
Surface Mount Chip Clip
DIP Clip
Surface Mount Probe Set
Precsion Probe Set
AccuTouch Probe
UltraTouch Base
AccuTouch Replacement Pins
THE "ULTRATOUCH" CASE STORES 1 TO 4 CONNECTION OPTIONS PLUS TWO TOP POUCHES
SAAB TWICE Module 68HC908AS60 in SATURN ECU 68HC11E9 in Toyota ECU 68HC05B16 in Ford cluster
THE "ULTRATOUCH" PACKAGES
BASIC Package - Part#UTBAS - $239.00

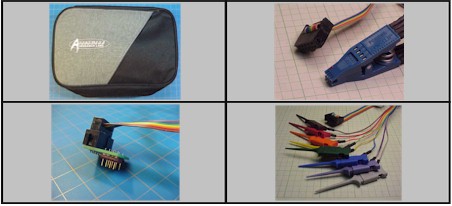

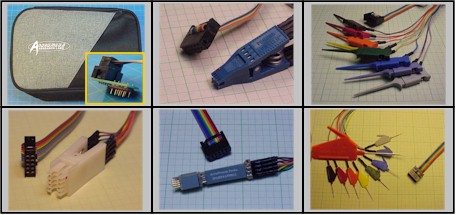

The UltraTouch BASIC package addresses the most common eeprom connections. The package includes the following items: STORAGE CASE, QUALITY BLUE SOIC CLIP with cable, SURFACE MOUNT PROBE SET with cable and the UltraTouch BASE. This package not only addresses the stancard SOIC eeprom parts but the probe set can also be attached to the pins on DIP eeproms such as founc in the Toyota Sequoia. The SOIC clip stores in the case top tpocket.
surface mount chip clip
ADVANCED Package - Part#UTADV - $379.00

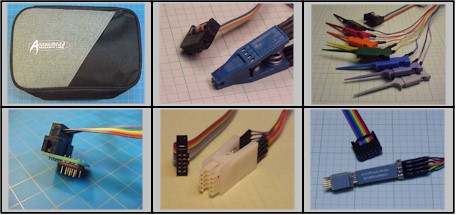

The UltraTouch BASIC package addresses the most common eeprom connections. The package includes the following items: STORAGE CASE, QUALITY BLUE SOIC CLIP with cable, SURFACE MOUNT PROBE SET with cable and the UltraTouch BASE. This package not only addresses the stancard SOIC eeprom parts but the probe set can also be attached to the pins on DIP eeproms such as founc in the Toyota Sequoia. The SOIC clip stores in the case top tpocket.
surface mount chip clip
ULTIMATE Package - Part#UTULT - $659.00
The UltraTouch BASIC package addresses the most common eeprom connections. The package includes the following items: STORAGE CASE, QUALITY BLUE SOIC CLIP with cable, SURFACE MOUNT PROBE SET with cable and the UltraTouch BASE. This package not only addresses the stancard SOIC eeprom parts but the probe set can also be attached to the pins on DIP eeproms such as founc in the Toyota Sequoia. The SOIC clip stores in the case top tpocket.
surface mount chip clip
OPTIONAL ITEMS
UltraTouch High Endurance Clip - Part #UTCLIP - $179.00

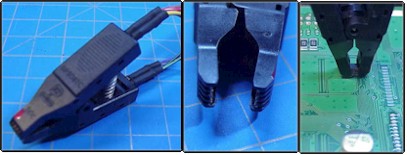

The UltraTouch high endurance, extended life clip is designed to address applications with frequent clip use. The blue clip, although more than adequate for typical use, will exhibit wear over time. The amount of wear and jaw design defines the useful life of a clip. The UltraTouch high endurance clip is fabricated using a compound which is extremely resistant to wear. The jaw design is such that it both "grips" and aligns with the part to achieve a positive lock. Once attached, the clip jaws must be compressed to permit easy removal.
Conformal Coating coating removal pen
Conformal Coating Removal Pen - Part #CCPEN - $49.00

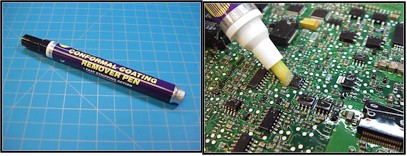

The Conformal Coating Removal Pen provides a convient and effective method to remove the conformal coating (humidity sealant) from circuit assemblies. With downward pressure applied, the removal pen despenses solvent into the nylon tip of the pen. The solvent is then brushed onto and across the chip pins.thereby removing the sealant and allowing a solid electrical contact surface for a clip or probes.
Conformal Coating coating removal pen
UltraTouch Zippered Case - Part#UTCASE - $69.00

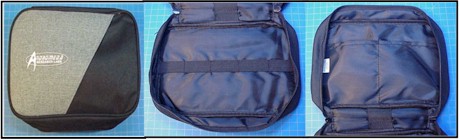

The UltraTouch Zippered Case may be used to contain and organize additional items or existing adapters or cables. The case has elastic hold-down straps in the bottom compartment. It also has two pockets in the case top.
CF-29 toughbook
ultratouch zippered case
HINGED STORAGE BOX - Part #HBOX - $7.00

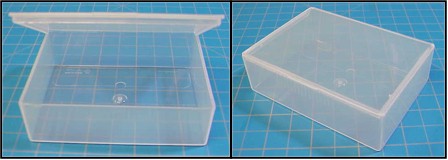

Hinged storage boxed, identical to those used for option storage, are available. The boxes are 3"x4"x1" with a latching hinged lid.
Travel case
